Context Menu

Component Context Menu

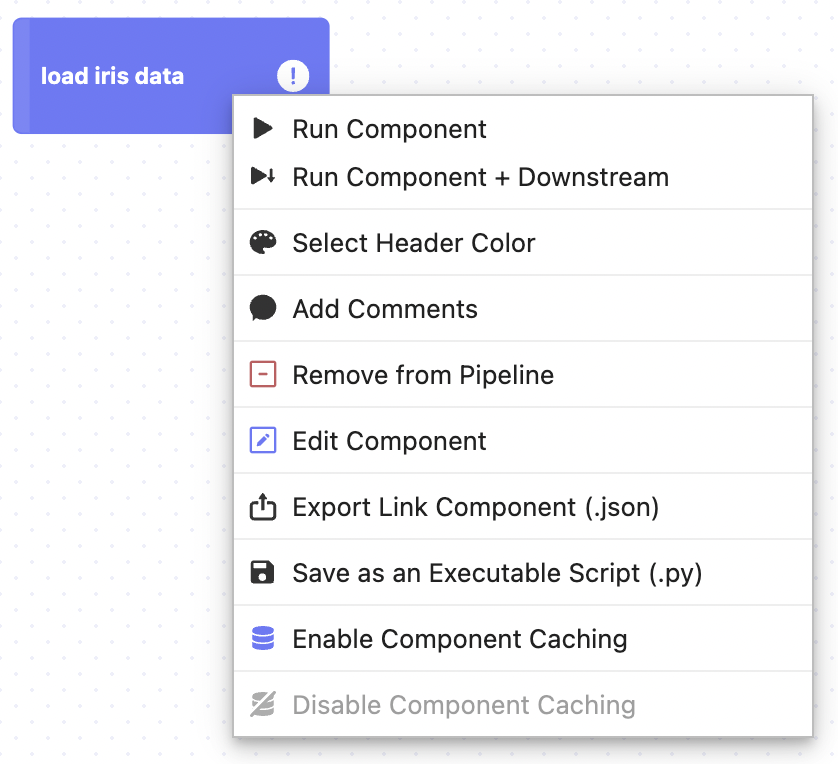

Right-click on a component in the pipeline panel to bring up the Context Menu.

  • Run Component: Run selected component (including upstream component).
  • ​Run Component + Downstream: Run selected component (including upstream component and downstream component).
  • ​Select Header Color: Set a header color of a selected component.
  • ​Add Comments: Add a comment on a selected component.
  • ​Remove from Pipeline: Remove selected components from the pipeline.
  • ​Edit Component: Edit the name and parent setting of a selected component.
  • ​Export Link Component (.json): Export selected component.
  • ​Save as an Executable Script (.py): Save a selected component as a Python file.
  • ​Enable Component Caching: Enable the cache of the selected component.
  • ​Disable Component Caching: Disable the cache of the selected component.

Pipeline Context Menu

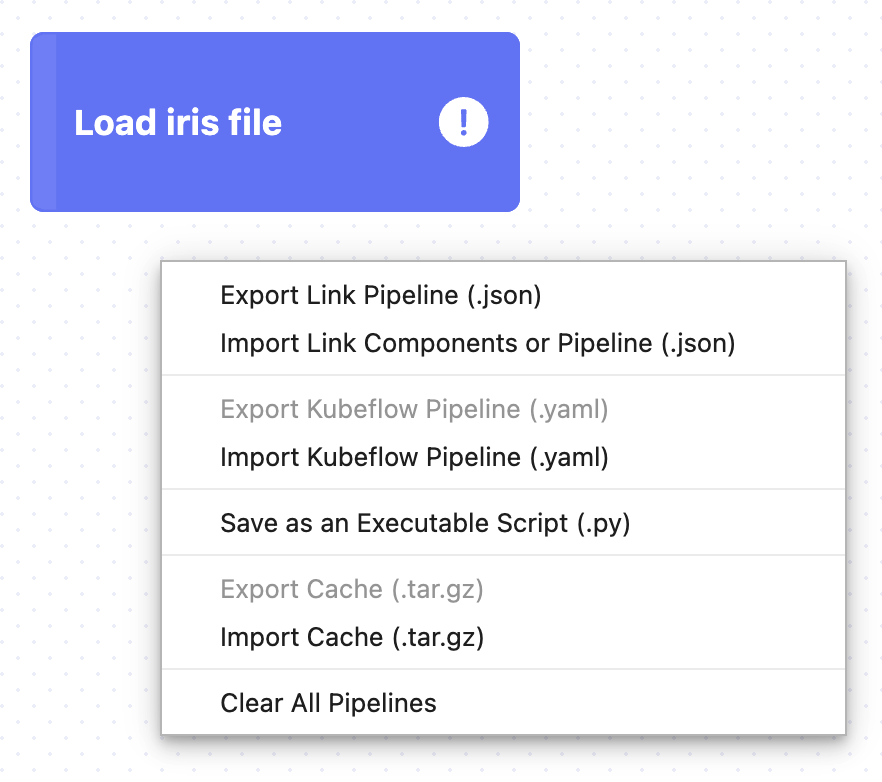

Right-click on the non-component area in the pipeline panel to bring up the Context Menu.

  • ​Export Link Pipeline (.json): Export entire pipeline.
  • ​Import Link Components or Pipeline (.json): Import saved pipeline components or pipelines.
  • Export Kubeflow Pipeline (.yaml): Export the entire pipeline to file compatible in Kubeflow. (However, all components need to be run to activate the menu)
  • ​Import Kubeflow Pipeline (.yaml): Import saved Kubeflow pipeline.
  • ​Save as an Executable Script (.py): Save the entire pipeline as a Python file.
  • ​Export Cache: Save caches of entire pipelines.
  • ​Import Cache: Import caches of the saved pipelines.
  • ​Clear All Pipelines: Delete all pipelines.
